8.2 ft Modular Outdoor Kitchen with Grill, Sink & Refrigerator
An 8 ft 3 in straight run that fits all four zones of an outdoor kitchen into one line: a 24 in sink, a 24 in under-counter outdoor refrigerator, a slim 11 in drawer cabinet, and a 32 in Napoleon built-in grill. For its length, it packs in more than any other straight run in the collection. Shown in Antracite with a charcoal back panel.
Made by Skol Outdoor Living, fabricated in 304 marine-grade stainless steel and sintered stone.
Layout
How this kitchen works

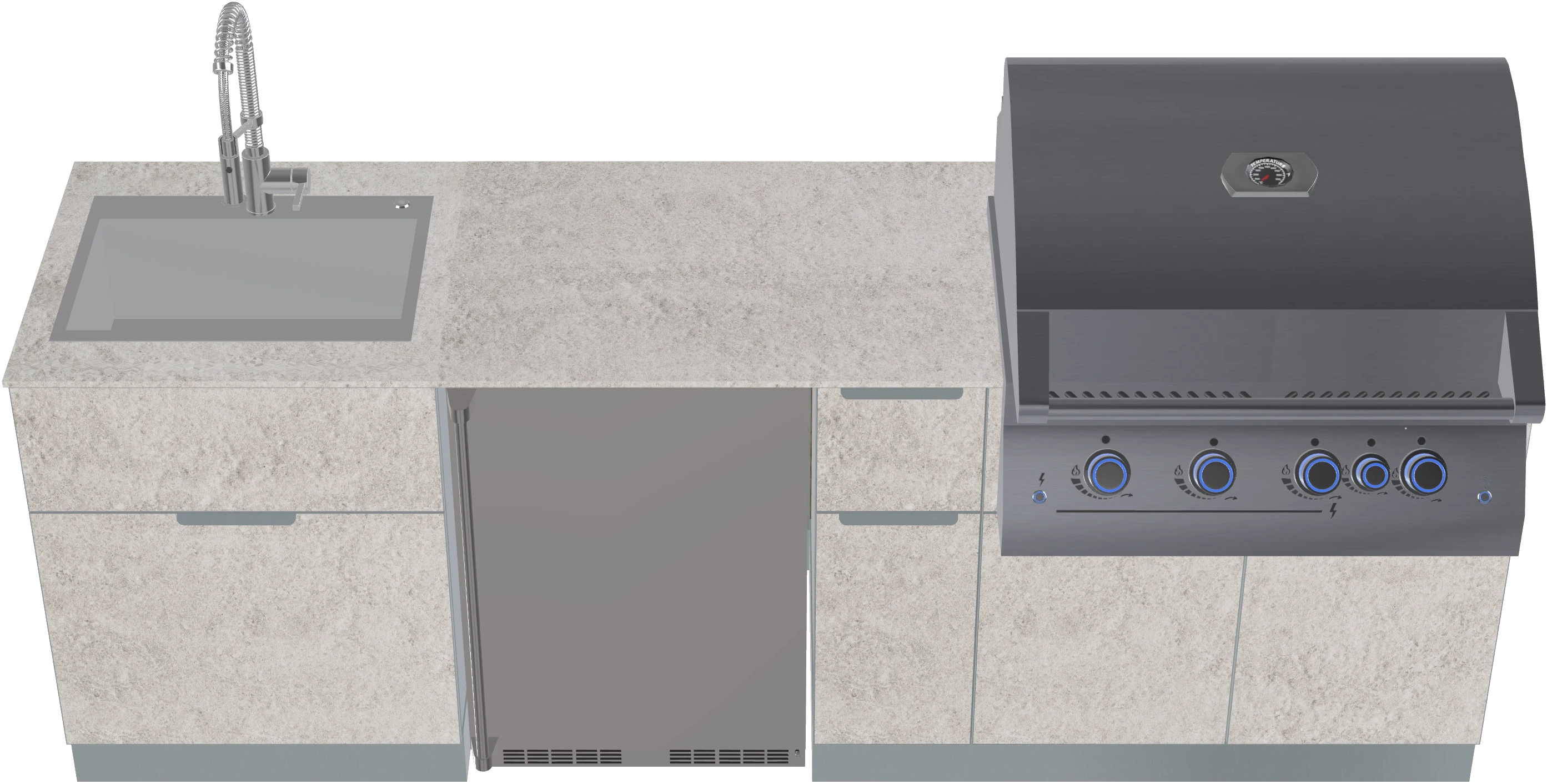

Left to right: sink cabinet (with a drawer and trash pull-out), refrigerator insert, 11 in two-drawer cabinet, grill in a 35 in grill cabinet.
That is the textbook order - wet, cold, dry, hot. Food comes out of the refrigerator, gets washed at the sink right next to it, is prepped on the counter, and goes on the grill without doubling back.
About 35 in of counter runs between the sink and the grill (over the refrigerator and the slim cabinet). The grill sits at the end of the run, so there is no counter on its far side - put that end against a wall or the edge of the patio.
New to linear layouts? See what a linear outdoor kitchen suits, the space it needs, and its pros and cons.
Will it fit
Size and the space it needs
Footprint: 8 ft 3 in long x 27 in deep, counter at about 36 in high.
Against a wall: about 8 ft 3 in x 6 ft of patio. Freestanding: about 14.25 x 9 ft.
It needs gas for the grill, water and a drain for the sink, and an outdoor-rated circuit for the refrigerator - all easier when the run backs onto the house.
Is it for you
Who this design suits
Best for
- A kitchen that runs on its own, without trips inside for water or cold drinks.
- Patios where 8 ft is the most run you can give it.
- Kitchens set further from the house, where a sink and refrigerator outside save the most walking.
Keep in mind
- Storage is light - one slim cabinet plus the drawer in the sink cabinet.
- No landing space on the far side of the grill.
Compare
Consider instead
9.8 ft Linear Outdoor Kitchen with Grill, Sink & Refrigerator →
The same zones in the same order, about 1 ft 8 in longer - adding a 20 in drawer cabinet beside the grill so there is counter on both sides of it.
8.1 ft Corner Outdoor Kitchen with Grill & Sink →
Have a corner instead of a wall? A compact L puts the sink around the corner from the grill.
L-Shaped outdoor kitchens →
Want more prep counter without a longer run? Turn the corner.

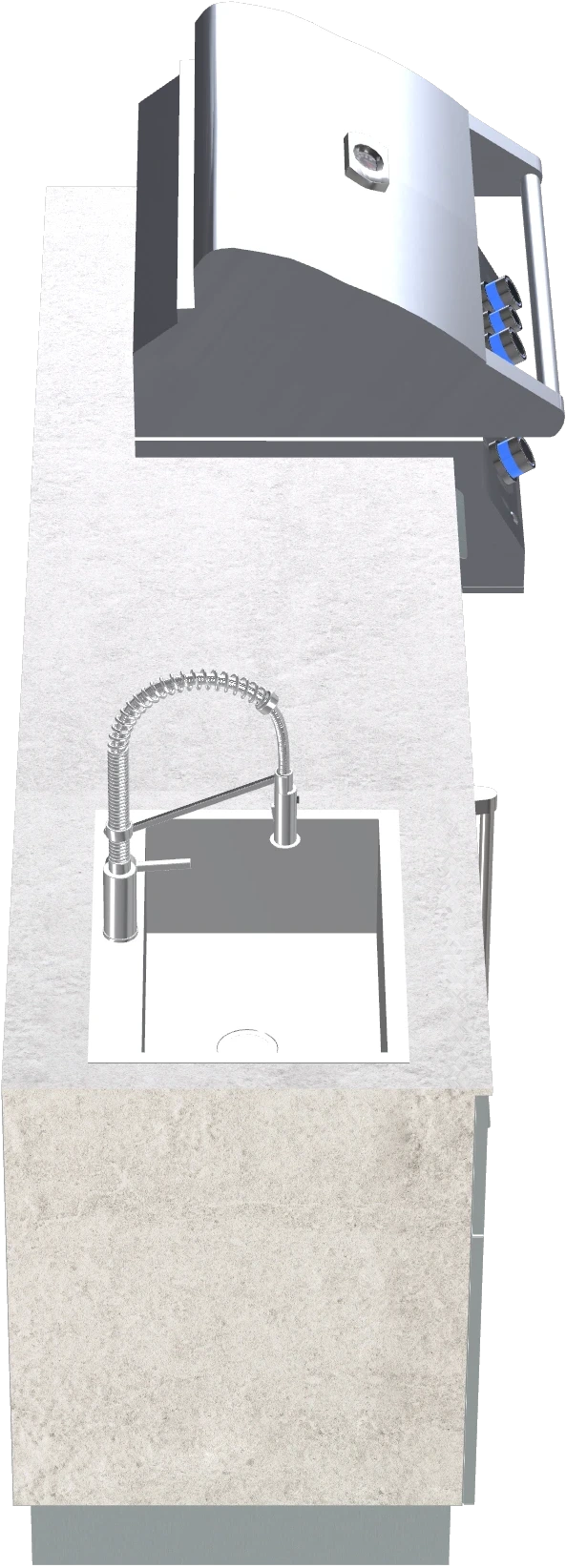

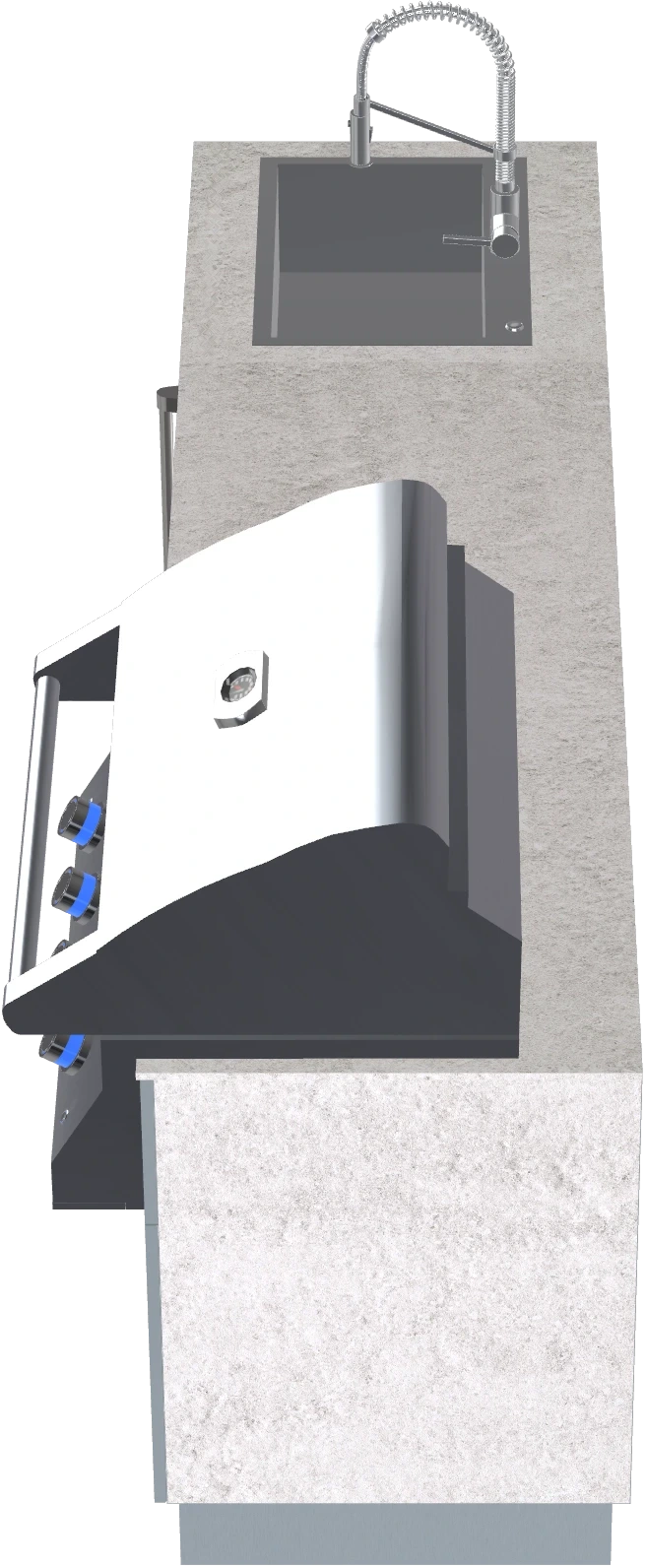

Gallery
See it from every angle

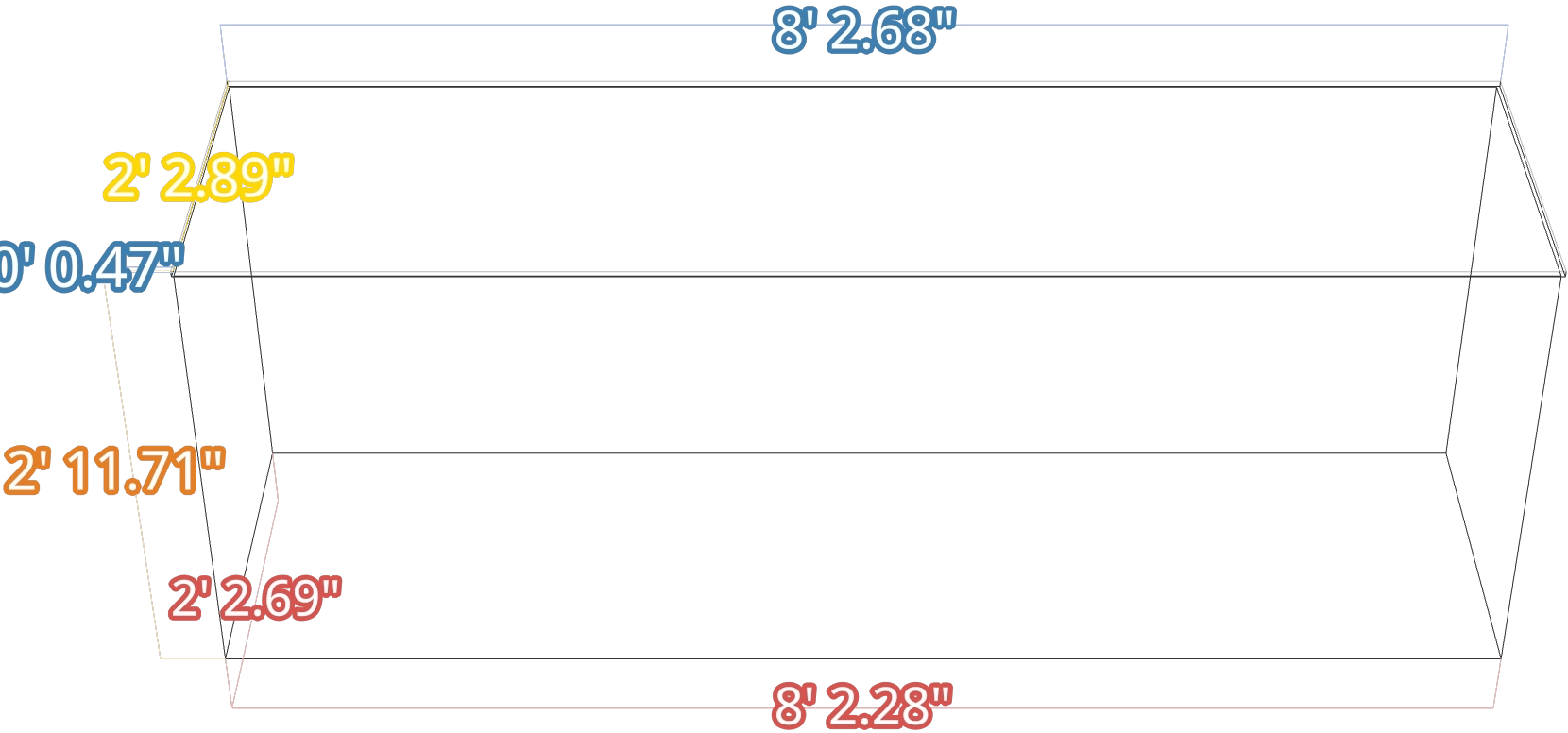

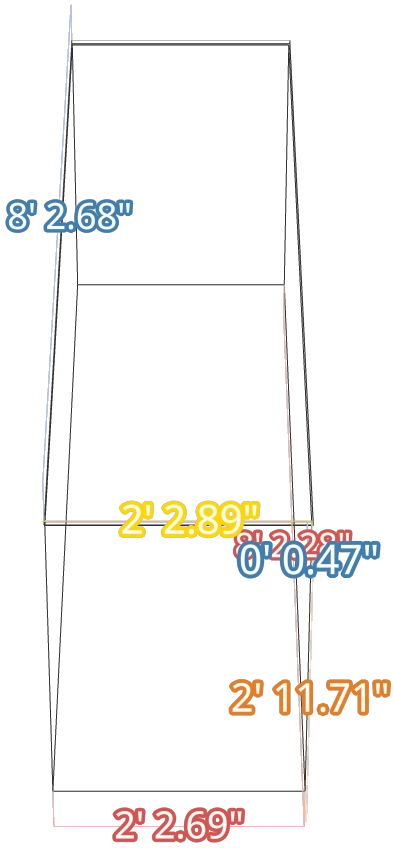

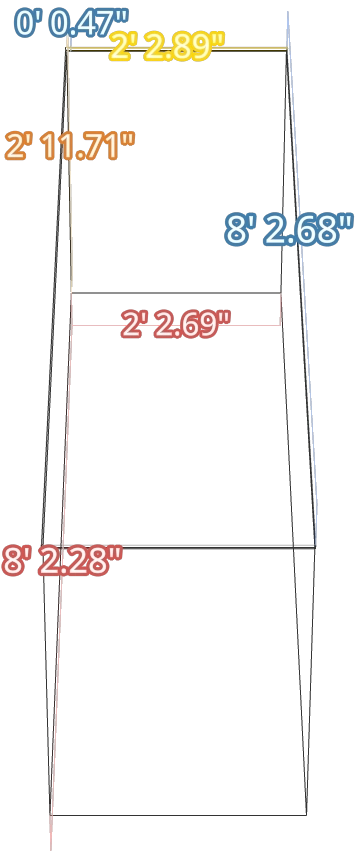

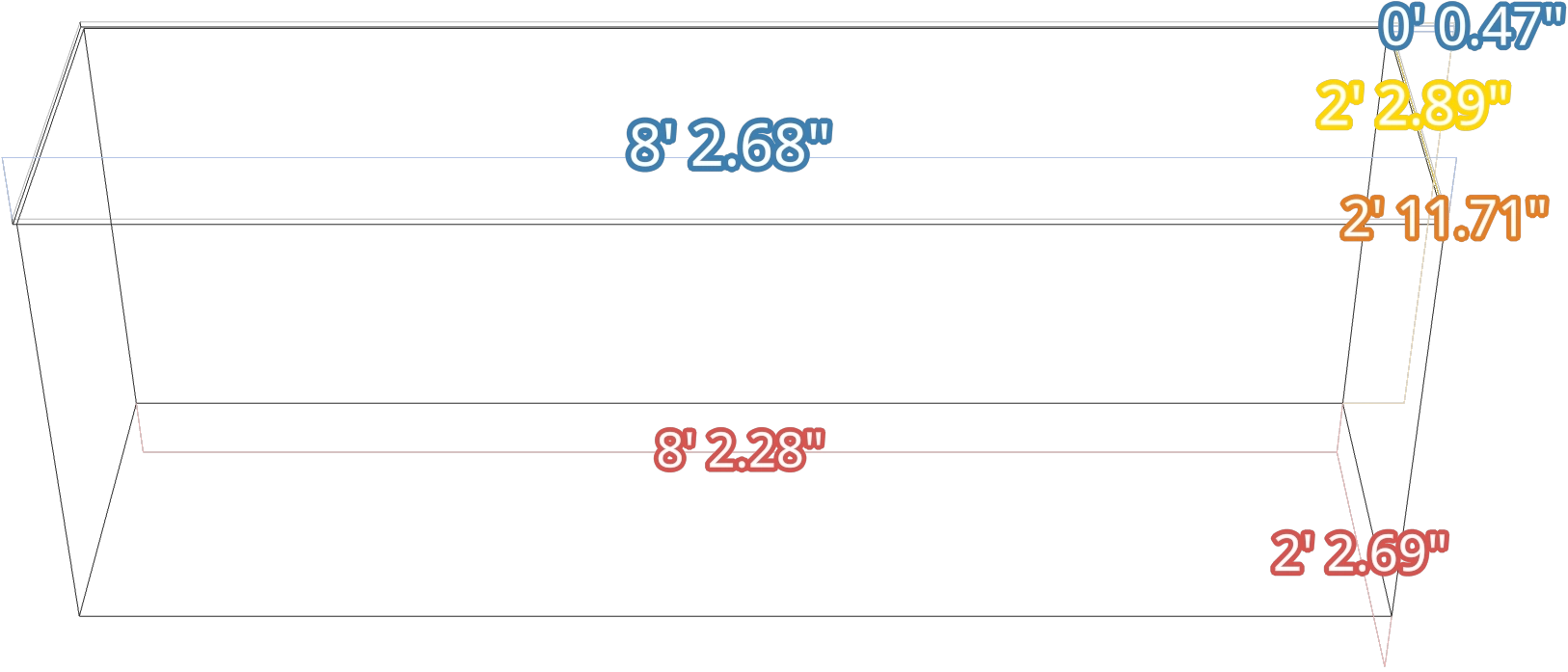

Dimensions
Measured layout and footprint.
Components
What's included
Cabinets & storage
- Grill Cabinet | 35” | 2 Doors35” grill base cabinet with dual doors and stainless-steel interior.
- Insert Cabinet | 24”Built-in insert cabinet for appliances up to 24” wide.
- Sink Cabinet | 28” | Drawer + Trash Can28” sink base cabinet with pull-out drawer and integrated trash can.
- Storage Cabinet | 11” | 2 Drawers11” slim storage cabinet with two soft-close drawers and stainless-steel interior.
Appliances
- Napoleon Built-In Grill 700 Series | 32”32” Napoleon 700 Series built-in grill with 4 burners, rear infrared rotisserie, and pro lighting.
- Napoleon Stainless Steel Outdoor Fridge | NFR055OUSS304 Stainless Steel | Electric | Full-size cooling with temperature memory — this outdoor-rated fridge fits seamlessly into any OASIS™ modular kitchen.
- Sink & Faucet Set | 24”24” stainless steel sink with 18” pull-down dual-spray faucet.
Materials & finishes
- 304 stainless steel — BrushedBody & frame
- Sintered stone — AntraciteCountertop · Front panels · Side panels
- Aluminum — BrushedToe kick

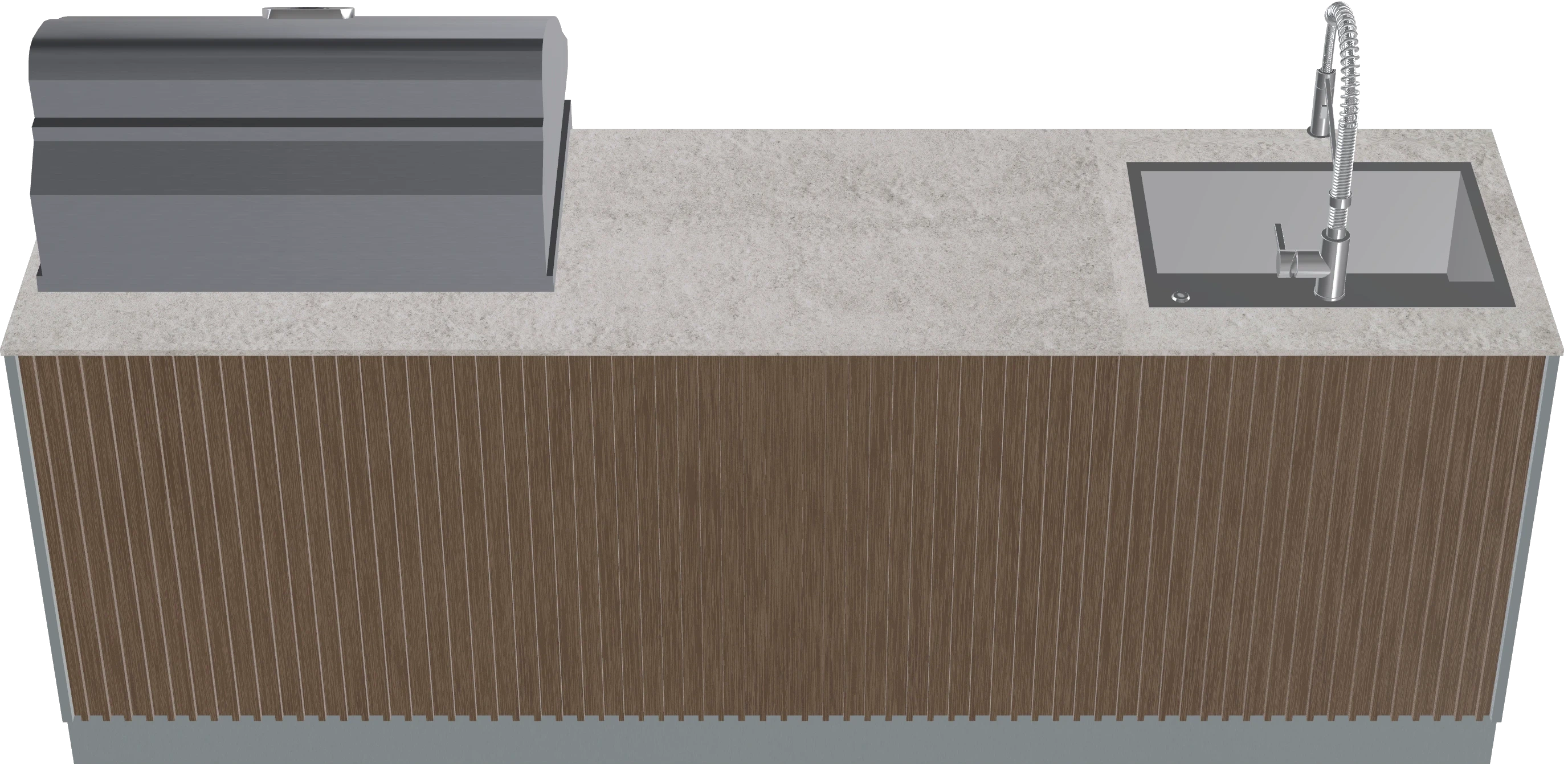

- Wood — CharcoalBack
Every material and finish is fully customizable in the 3D designer — swap stones, colors, and finishes on any surface to match your space.
Materials & dimensions
Specs
- width
- 8' 3"
- depth
- 2' 3"
- height
- 3' 0"
Questions
About this outdoor kitchen
- How much space do I need for this outdoor kitchen?
- The run measures 8' 3" wide and 2' 3" deep, standing 3' 0" tall. Allowing about 3.5 ft of clear floor to stand and cook in front, plan on roughly 8' 3" by 5' 9" of patio.
- What comes with this design?
- As configured: 4 cabinet modules (Grill Cabinet, Insert Cabinet, Sink Cabinet and Storage Cabinet), built around Napoleon Built-In Grill 700 Series, Napoleon Stainless Steel Outdoor Fridge and Sink & Faucet Set.
- What is this outdoor kitchen made of?
- 304 stainless steel in Brushed on the body & frame, Sintered stone in Antracite on the countertop, front panels and side panels, Aluminum in Brushed on the toe kick and Wood in Charcoal on the back.
- How do I get a price on this design?
- Open it in the 3D designer and hit "Get Quote" for an itemised price on the exact modules and finishes in your layout - including any changes you make. No account needed to start.
- Who builds and installs it?
- You configure and price it here; Skol Outdoor Living manufactures, delivers, and installs it - a few weeks to ship, about a day on site.
